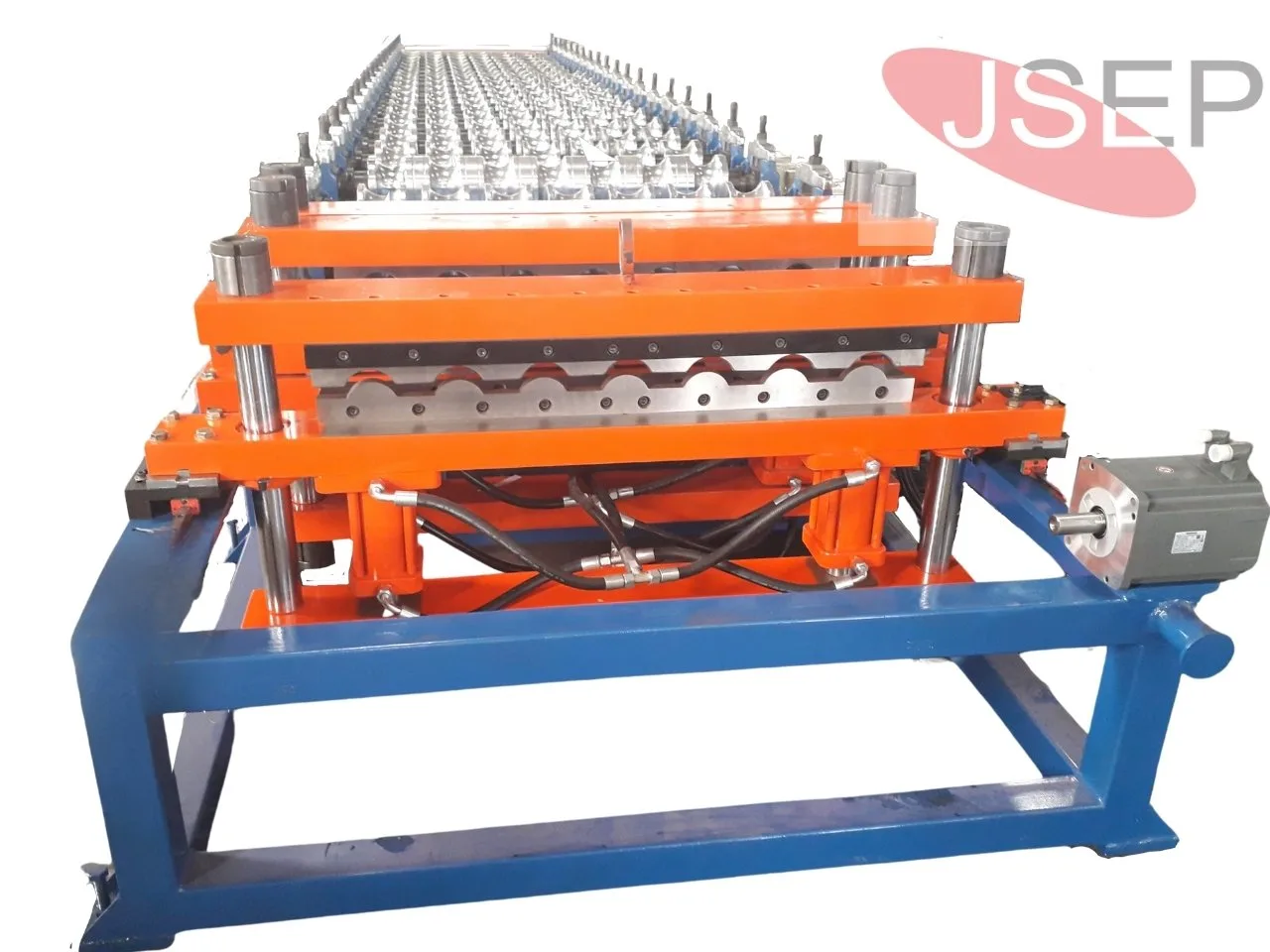

Bamboo Profile Machine
Bamboo Sheet Roll forming is continuous bending operation in which a long strip of metal sheet (usually steel coils, like PPGI, PPGL, GI, PPGL, BGL, Aluminum etc.) passes through sets of rolls mounted on consecutives stand each set performing only an incremental part of the bend, until the desired cross-section profile is obtained. Roofing sheet roll forming machine consists of an automatic Decoiler feeding guide, roll forming unit, hydraulic cutter with PLC base control system. We are involved in offering a wide array of color sheet making machine that is manufactured using high grade raw material and the latest technology with the set universal standards.
- Description
- Specification
- Application

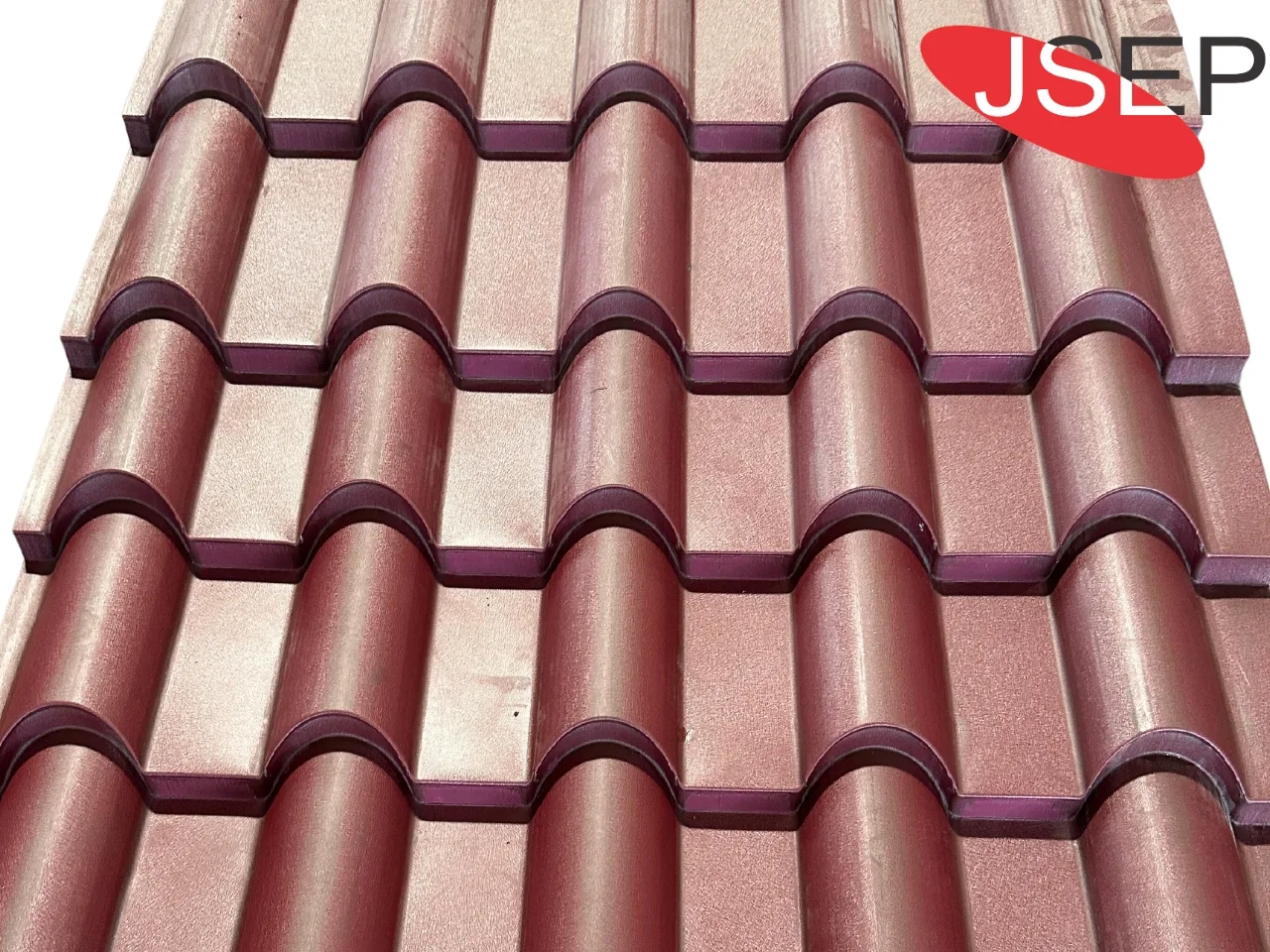

Bamboo Profile Roll Forming is a specialized manufacturing process that involves shaping flat metal sheets into profiled sheets with raised ribs. This process enhances the strength and rigidity of the sheets, making them ideal for a wide range of applications, including the production of Bamboo Roof Sheets.
Bamboo Profile Roll Forming Machine can be setup in various corrugations to punch & cut off products in a continuous operation.
Cut a part to length, the line can be set up to use a pre cut die where a single blank runs through the roll mill, or a post cut die where the profile is cutoff after the roll forming. Variable in size to achieved the distance between the roll variations by manual or computerized control system.
Machine can produce different design – Shape in a single roll.
It’s a very amazing product to use in Industry for roof sheets!
| Bamboo Profile Sheet Machine – 1220mm | |
| General Specification | |
| Type of material to be processed | Colour Coated & Bare Galvalume |
| Thickness fo Sheet | 0.35mm ~ 0.80mm |
| Yield Strength | 550 Mpa |
| Sheet / Coil width | 1220 mm ± 10 mm |
| Power Required | 17 kVA |
| Maximum Weight of Coil | 5 MT |
| Variable Line Speed | 25 ~ 30 Mpm |
| Automation level in performance | P.L.C. Controlled Length |
| Accuracy Level | Length: ± 2 M.M. |
| Number of Profile | Single Profile (as per approved Drawing) |
| Profile Dimension | as per Approved Drawing |
| Length of Profile sheet | as per Customer Requirement |
| Complet Line Weight | 11 ~ 12 MT (Approx) |
| Colour of Machine | Blue & Red Orange |
