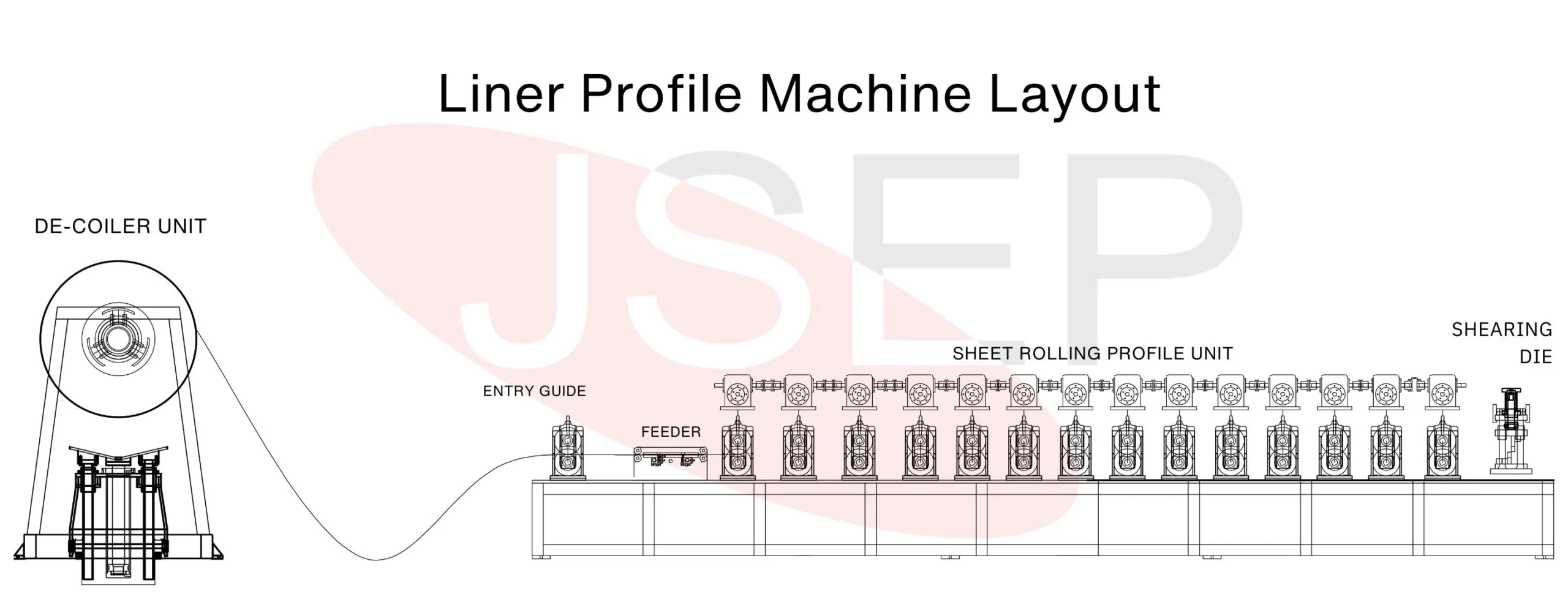

Machine Layout

What Are Liner Profiles?

Liner profiles, also known as cladding profiles, are essential components in a range of industries. They serve as protective coverings or aesthetic finishes, adding structural integrity and enhancing the appearance of various surfaces.

High-Speed Production

Our machines are engineered for high-speed roll forming, enhancing efficiency and reducing production time.

Customization

Tailor-made solutions are our specialty, allowing you to meet specific liner profile requirements.

Robust Durability

JSEP machines are built to endure, incorporating top-quality components that withstand daily rigors.

User-Centric Design

User-friendly controls and easy maintenance ensure seamless operation.

Energy Efficiency

We prioritise sustainability, with energy-efficient systems that lower operational costs and environmental impact.

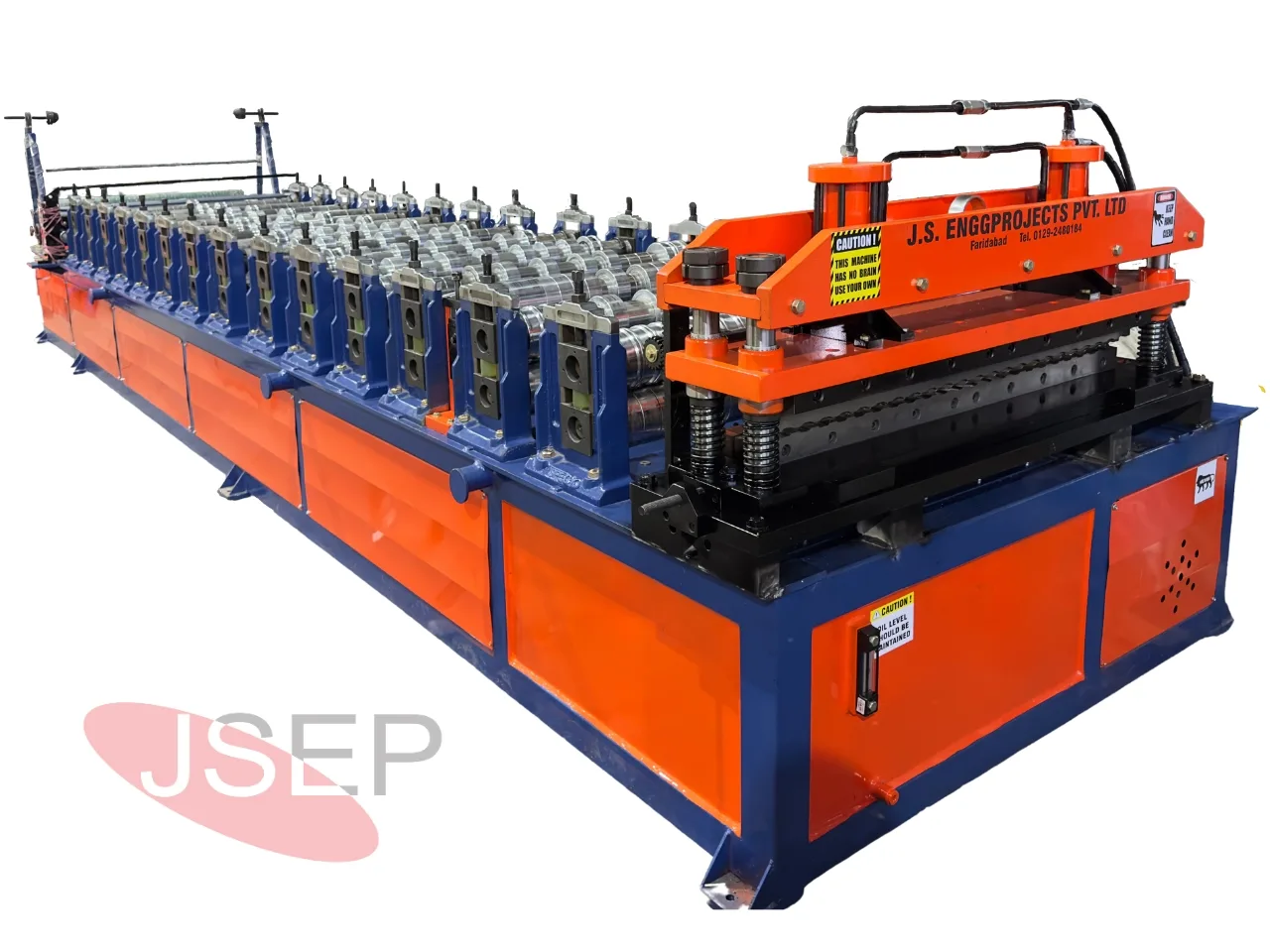

Liner Profile Roll Forming Machine – 1220mm
General Specification
Type of material to be processed	Colour Coated & Bare Galvalume
Thickness fo Sheet	0.35mm ~ 0.80mm
Yield Strength	550 Mpa
Sheet / Coil width	1220 mm ± 10 mm
Power Required	17 kVA
Maximum Weight of Coil	5 MT
Variable Line Speed	25 ~ 30 Mpm
Automation level in performance	P.L.C. Controlled Length
Accuracy Level	Length: ± 2 M.M.
Number of Profile	Single Profile (as per approved Drawing)
Profile Dimension	as per Approved Drawing
Length of Profile sheet	as per Customer Requirement
Complete Line Weight	11 ~ 12 MT (Approx)
Colour of Machine	Blue & Red Orange
