JSEP MACHINERY

GLAZED TILE ROLL FORMING MACHINE

Glazed Tile Roof Roll Forming Machine, a cutting-edge solution that transforms raw materials into exquisite roofing sheets with the charm of traditional tiles.

With decades of experience in the industry, JSEP brings you a reliable and high-quality solution that combines aesthetics with functionality.

Glazed tile profile roofing machine - roll forming machine

  • Description
  • Specification
  • Application
  • Gallery
  • Machine Layout
Mimicking Elegance

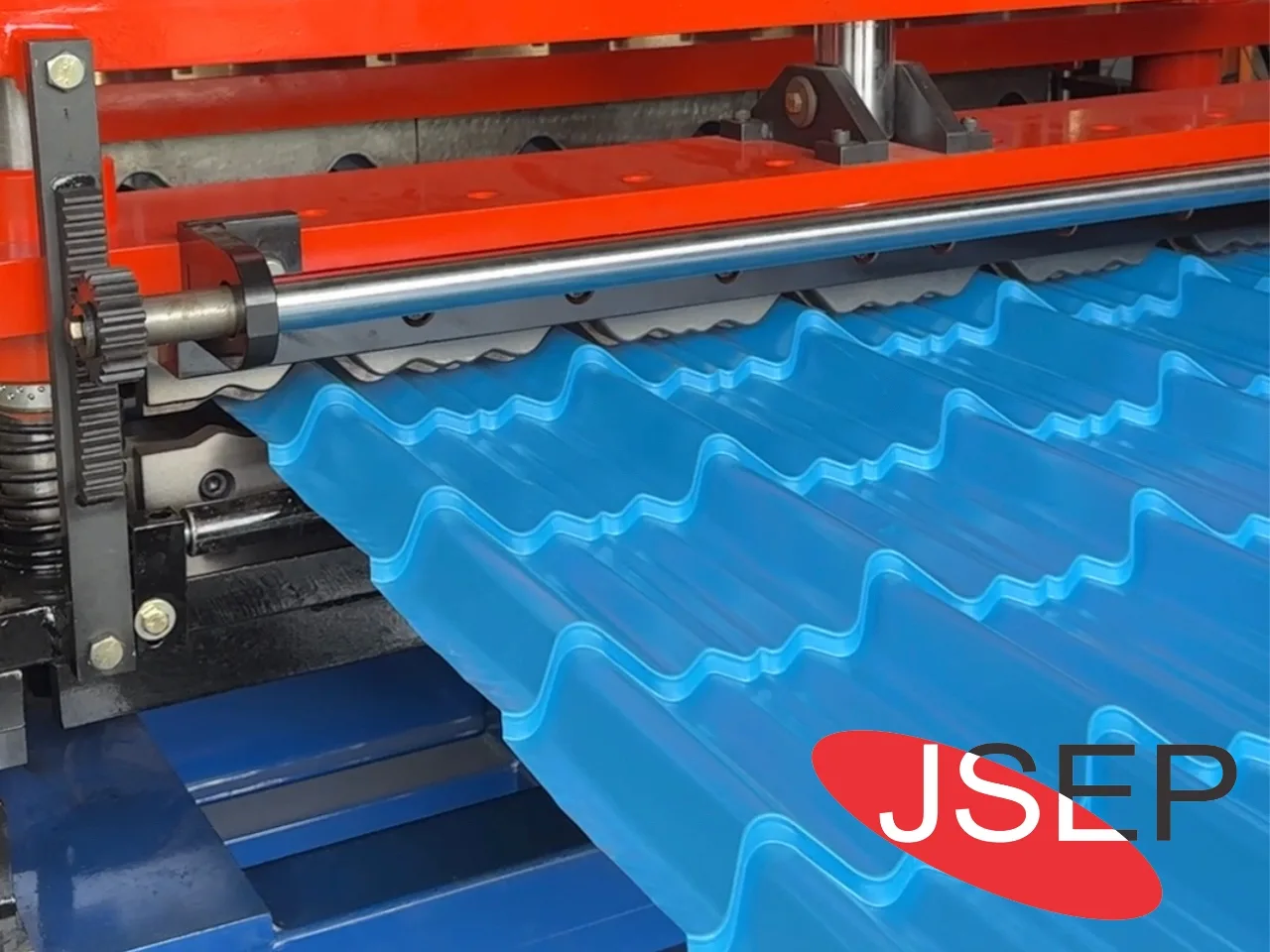

Our Glazed Tile Roll Forming Machine is a true marvel. It is designed to create roofing sheets that mimic the elegance of clay or concrete tiles, adding a touch of sophistication to your structures. The advanced technology incorporated in this machine ensures a seamless and accurate profiling process, resulting in roofing sheets that are not only uniform but also irresistibly attractive.

Versatility in Applications

Whether you are embarking on new construction or renovation projects, our Glazed Tile Roll Forming Machine delivers roofing solutions that are both durable and visually appealing. Its versatility allows it to cater to various sectors, including residential, commercial, and industrial projects.


Tile Profile Roll Forming machine Manufacturer in Faridabad, Haryana, India

Explore our Tile Profile Roofing Sheets. Click to learn more!

Achieving Authentic Tile Appearance

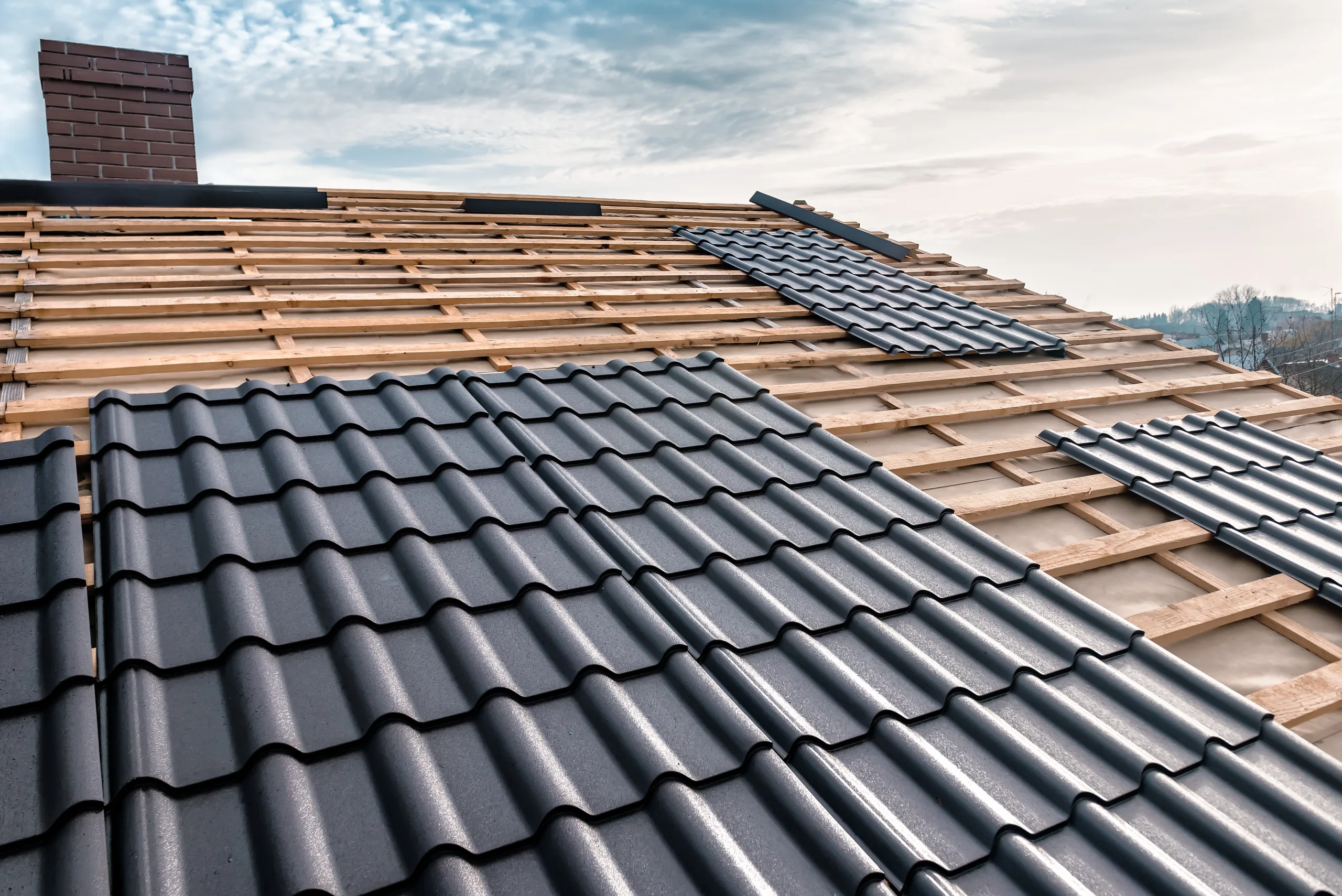

The Glazed Tile Roll Forming Machine meticulously crafts metal profiles that faithfully resemble traditional roofing tiles, offering timeless aesthetics.

Tailored Customization

This machine provides flexibility in profile design, accommodating variations in tile size, shape, and color to precisely match unique architectural and design requirements.

Exceptional Durability

The roll-formed metal tiles are renowned for their robust structural integrity and resilience against harsh weather conditions, establishing them as a reliable and long-lasting roofing choice.

Cost-Efficiency

By automating the manufacturing process and minimizing material waste, the machine significantly contributes to cost savings for manufacturers.

Enhanced Efficiency

With its high-speed production capabilities, the machine ensures swift and efficient manufacturing, empowering businesses to effectively meet production demands.

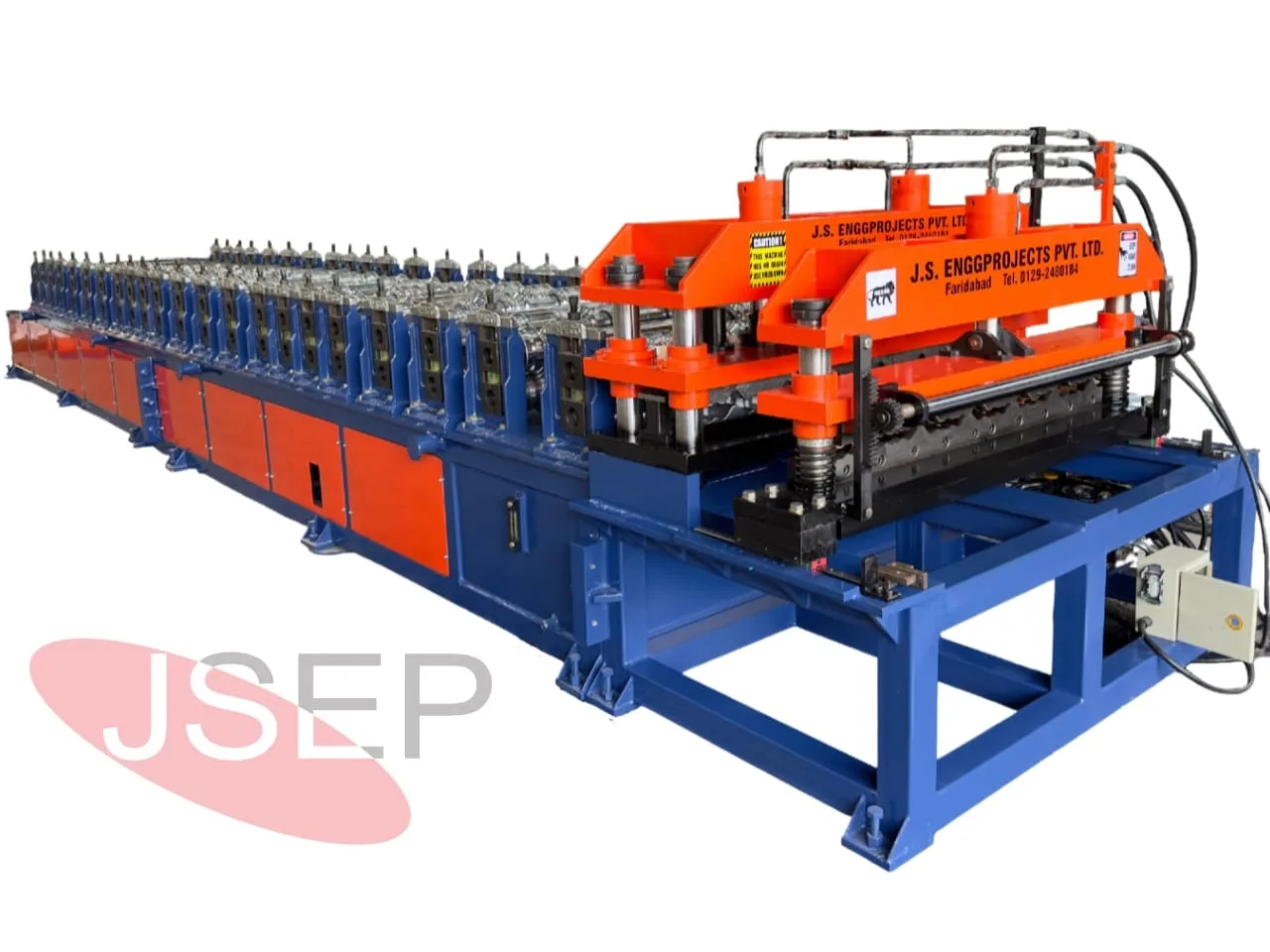

Glazed Tile Roll Forming Machine – 1220mm
General Specification
Type of material to be processed
Colour Coated & Bare Galvalume
Thickness fo Sheet
0.35mm ~ 0.60mm
Yield Strength
240 Mpa
Sheet / Coil width
1220 mm  ± 10 mm
 Power Required
21 kVA
Maximum Weight of Coil
5 MT
Variable Line Speed
5~7 Mpm
 Automation level in performance
P.L.C. Controlled Length
Accuracy Level
Length: ± 2 M.M.
Number of Profile
Single Profile (as per approved Drawing)
Profile Dimension
as per Approved Drawing
Length of Profile sheet
as per Customer Requirement
Complet Line Weight
11 ~ 12 MT (Approx)
Colour of Machine
Blue & Red Orange

Tile Profile Roll Forming machine Manufacturer in Faridabad, Haryana, India


JSEPROJECTS Metal Roofing Solutions

Roof Tile Profile Roll Froming Machine in India

Our Glazed Tile Roll Forming Machine find applications in a wide range of industries, each benefiting from its unique capabilities.

Versatility in Applications

In the construction industry, our machines shine brightly. They are ideal for roofing and wall cladding applications in residential, commercial, and industrial buildings. The precision and aesthetics they offer elevate the visual appeal of any structure.

Architectural Creativity Unleashed

Architects and designers have embraced the versatility of our Tile Profile Roll Forming Machine. It allows them to create stunning facades, decorative elements, and unique architectural features. The machine’s ability to deliver intricate designs opens up a world of creative possibilities.

Indoor Elegance

The allure of tile-like aesthetics is not limited to exteriors. Our machine is equally adept at producing decorative metal sheets for interior design and decor applications. From ceiling panels to wall coverings, it brings sophistication to the indoors.

Tailoring Unique Solutions

For custom projects where unique tile profiles are required to meet specific design goals, our machine is the perfect choice. Its customization options empower you to create roofing solutions that are tailor-made to your vision.


Tile Profile Roll Forming machine Manufacturer in Faridabad, Haryana, India

Tile Profile Roll Forming machine Manufacturer in Faridabad, Haryana, India

Tile Profile Roll Forming machine Manufacturer in Faridabad, Haryana, India

Tile Profile Roll Forming machine Manufacturer in Faridabad, Haryana, India


Tile Profile Roll Froming Machine in India



JSEP MACHINERY

Specializations

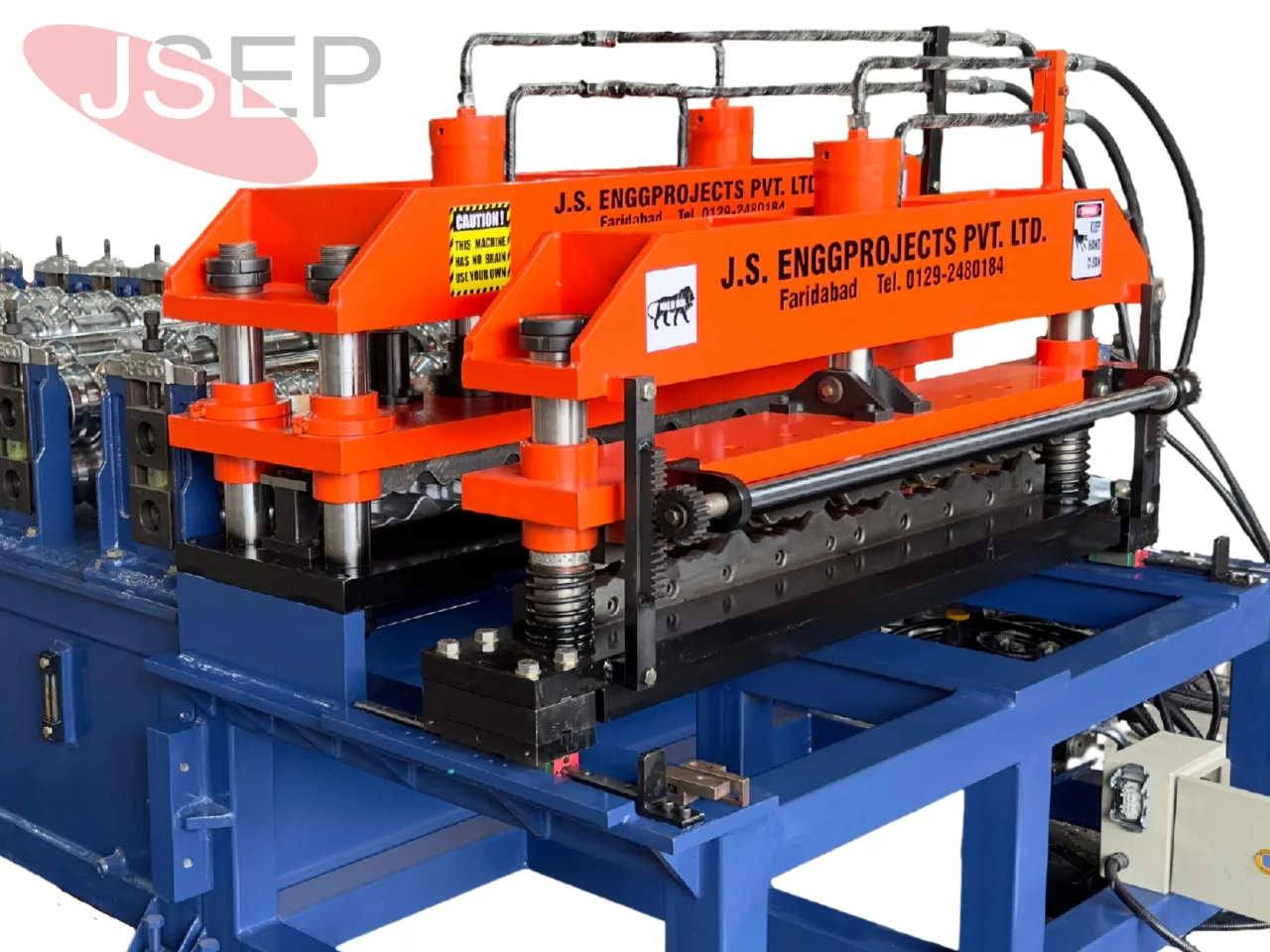

Tile Profile Roll Forming Machine by JSEP represents a pinnacle of specialization in the field of metal roofing solutions. This machine is uniquely tailored for creating large-format metal roofing tiles that excel in both aesthetics and performance.
Precision Profiling

Our machine excels in precision, meticulously controlling the profiling process, ensuring each roofing sheet is crafted with unmatched accuracy, resulting in seamless, flawless roofing.

Speed and Efficiency

Designed for high-speed production without compromising quality, our Glazed Tile Roll Forming Machine ensures timely project completion, saving valuable time and resources.

Durability and Reliability

Recognizing roofing as a long-term investment, our machines are engineered for enduring performance. Quality materials and precision engineering guarantee reliability and longevity.

Low Maintenance

Engineered for minimal maintenance, our machines minimize operational disruptions, reducing costs, and ensuring the smooth and efficient progress of your roofing projects.



Tile Profile Roll Forming machine Manufacturer in Faridabad, Haryana, India

Aesthetic Precision

The machine excels in replicating the authentic look of traditional roofing tiles with intricate details and precision.

Customization for Your Needs

We offer customization options to tailor our machines to your unique manufacturing needs.


Service and Support:

Quality extends beyond machine delivery. Our team offers ongoing technical support and maintenance to optimize your machine’s lifecycle.
