Sandwich Panel Roll Forming Machine

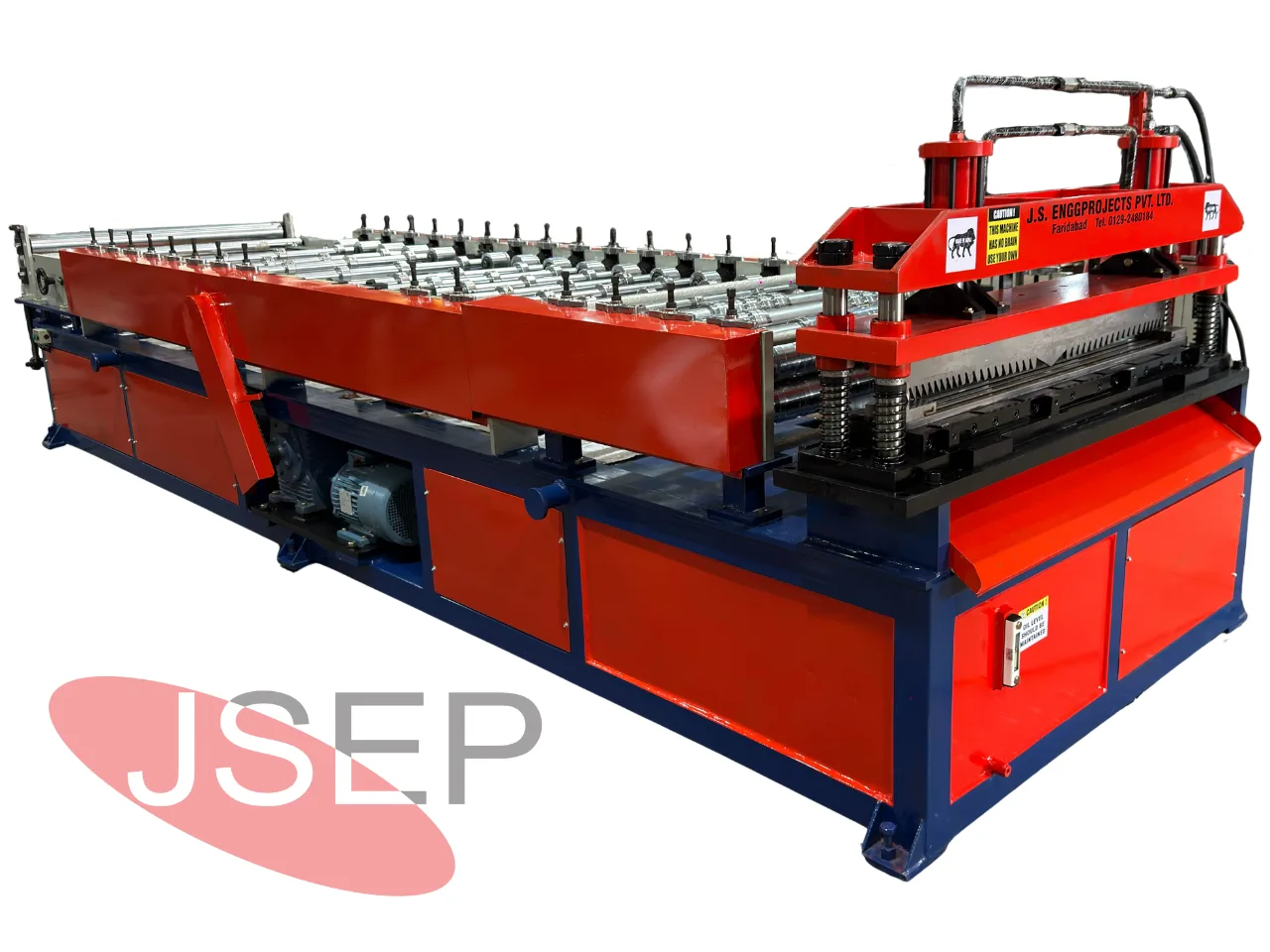

Wall Sandwich Panel Roll Forming Machine
Engineering Specificity: This specialized machinery is dedicated exclusively to wall profile geometries. By focusing entirely on interlocking joint precision, our forming lines eliminate edge flare, micro-cracking of pre-painted coatings, and joint misalignment, ensuring flawless downstream lamination with insulation cores.
- Description
- Specification
- Application
- Photos/Video
- Machine Layout
Deep-Dive Section: Mastering Wall Panel Joints (Z-Lock vs. C-Lock)
Z-Lock Joints (Hidden Screw / Secret-Fix)
The Z-Lock profile is pressed as an asymmetrical “Z” into the panel skin. Fasteners are driven through the exposed lower leg into the substructure; when the neighbouring panel slides into place, its overlapping lip fully conceals the fastener heads to leave a flush, uninterrupted face. This clean aesthetic is why architects rely on our hidden-screw wall cladding machine for secret-fix systems where visual sightlines matter as much as weather resistance. As a purpose-built Z-Lock sandwich panel machine, the line holds the strict tolerances required for corporate facades, retail frontages, and public-facing PEB elevations.
C-Lock Joints (Cam-Lock / Tongue-and-Groove)
The C-Lock profile features a male tongue and a mating female groove engineered to interlock under compression. Because the faces are geometrically matched, the assembled joint forms a hermetic seal with no straight-through metal path for heat to bridge across the wall. This thermal-bridge-free performance makes our cam-lock panel sheet profiling machine the default choice for cold storage freezers, temperature-controlled logistics docks, and pharmaceutical cleanrooms where even a minor air leak compromises the envelope. Configured as a C-Lock wall panel sheet line, the system seamlessly switches between joint profiles without requiring a coil change.
High-Speed Variable Production: Engineered for rapid industrial output, our roll forming lines operate at synchronized speeds of 18 to 20 Meters per Minute (Mpm). This high throughput drastically reduces unit manufacturing costs and maximizes daily factory output.
Custom Tooling & Profile Engineering: Every building project is unique. We design custom roller profiles tailored precisely to your architectural drawings—capable of producing concealed fastener wall sheets, architectural cladding, and industrial cold storage wall panels.

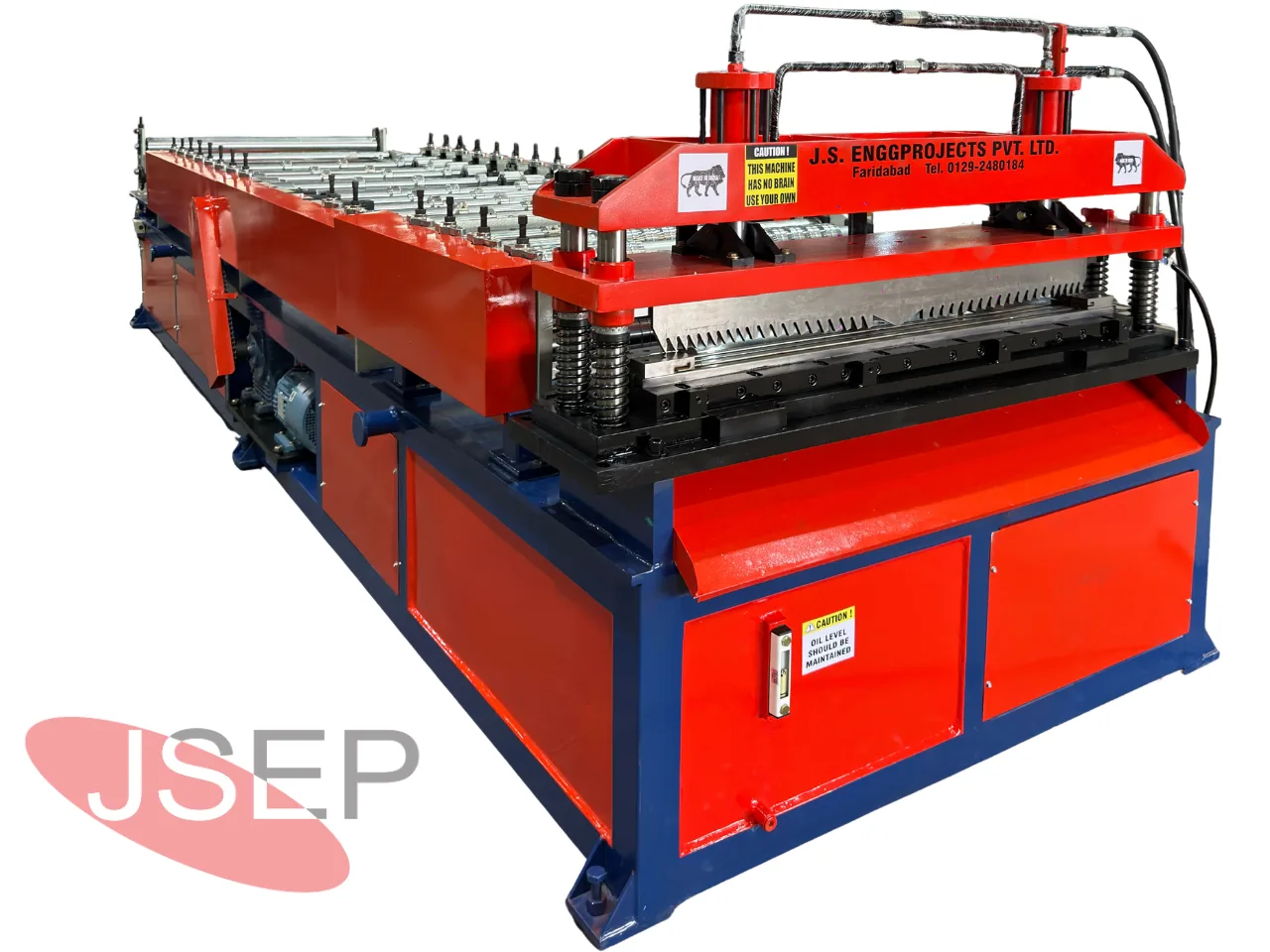

Heavy-Duty Structural Construction: Built on robust, stress-relieved steel chassis, JSEP machines are designed to absorb operational vibrations. Our forming rollers are CNC-machined from high-grade alloy steel, heat-treated, and hard chrome-plated for decades of wear-free operation.

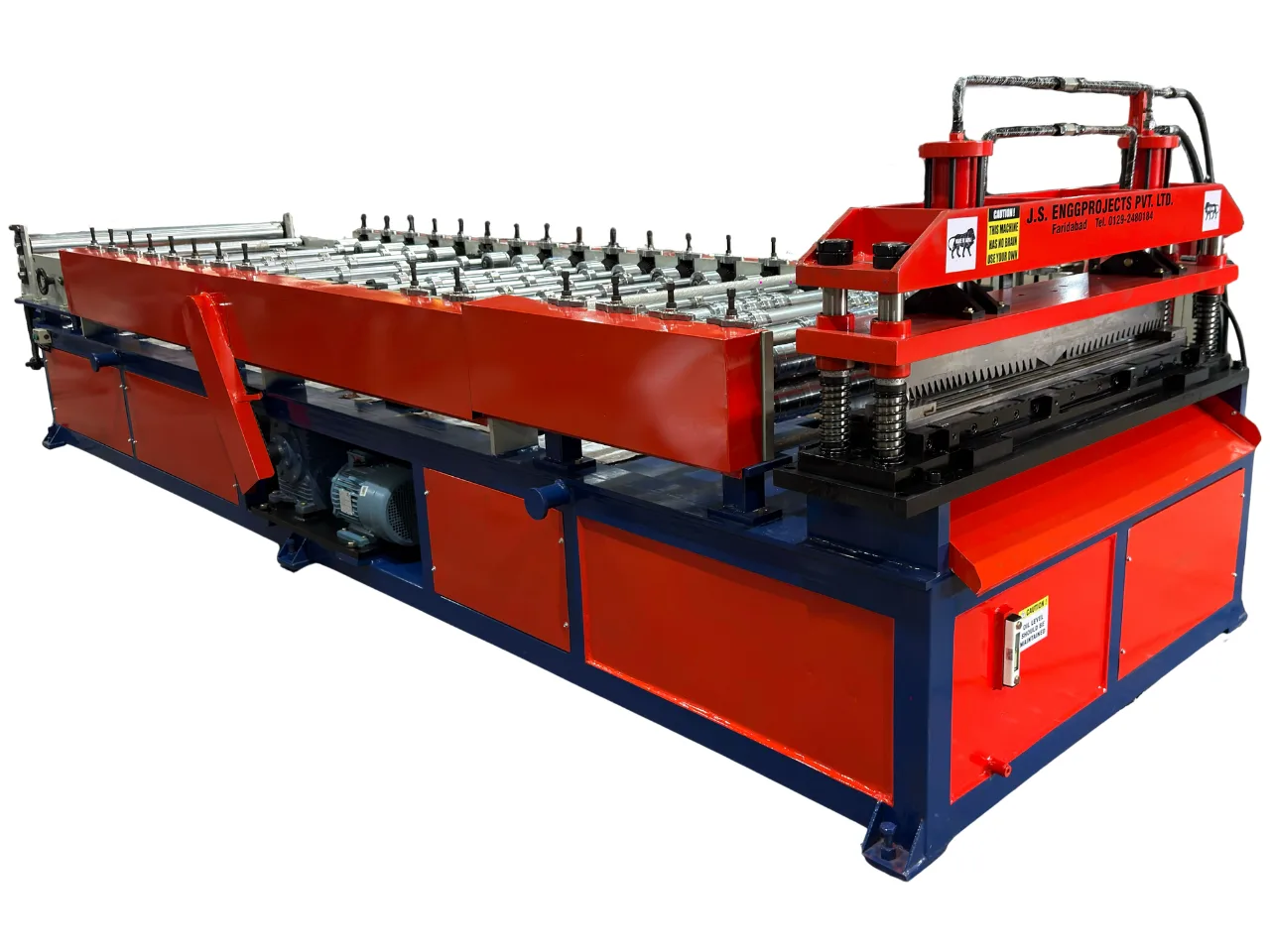

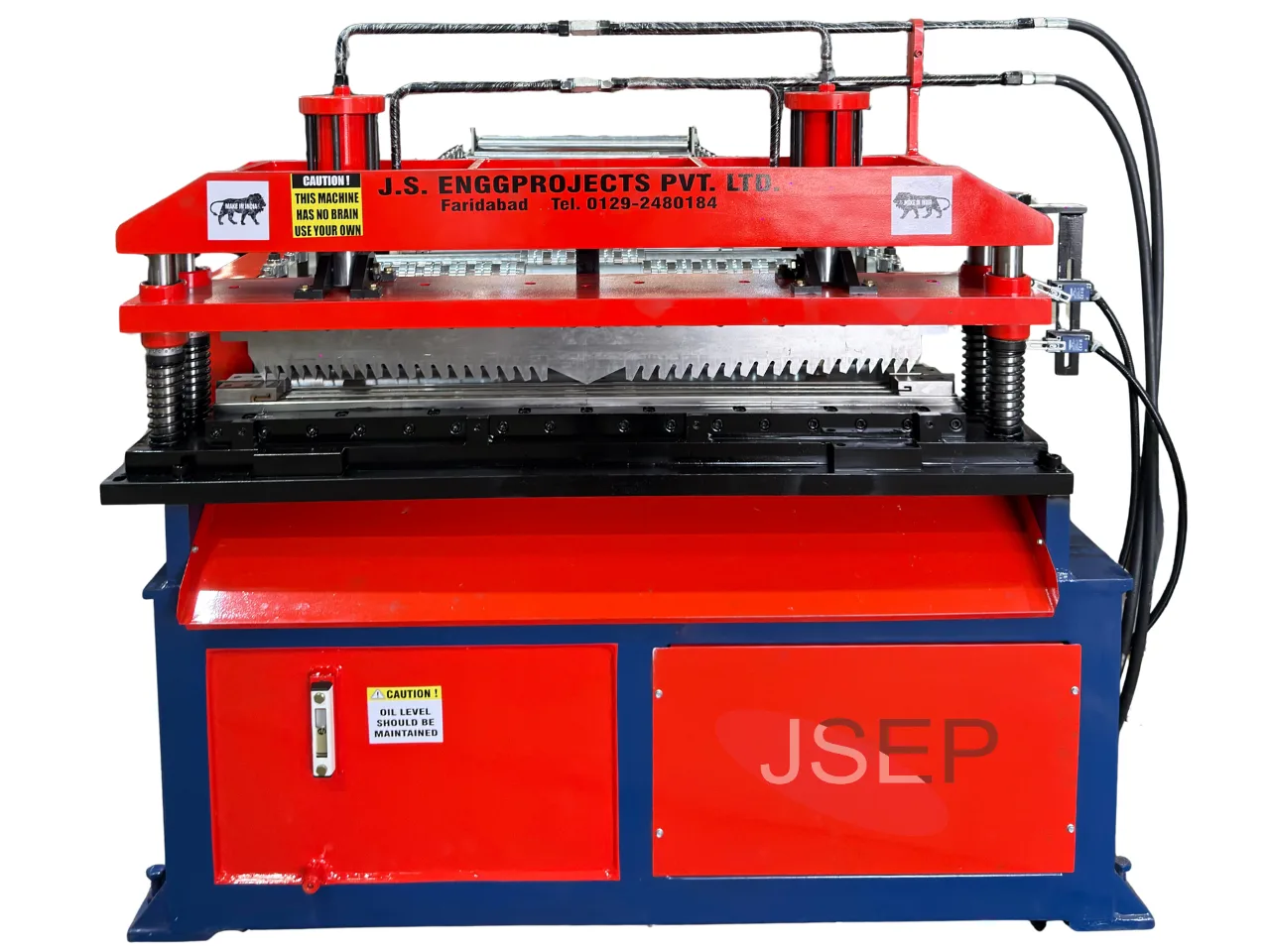

Automated PLC Control System: Integrated with state-of-the-art PLC automation and an intuitive HMI touchscreen, operators can easily program sheet lengths, monitor batch quantities, and execute flying hydraulic cuts with an exceptional accuracy of ± 2.0 mm.
Sandwich Panel Roll Forming Machine– 1220mm | |
General Specification | |
Type of material to be processed | PPGI, PPGL, Galvanized & Colour Coated Steel Coils |
Thickness fo Sheet | 0.35mm ~ 0.80mm |
Yield Strength | 550 Mpa |
Sheet / Coil width | 305 ~ 1220 mm |
Power Required | 19 kVA |
Maximum Weight of Coil | 5 MT |
Variable Line Speed | 18 ~ 20 Mpm |
Automation level in performance | P.L.C. Controlled Length |
Accuracy Level | Length: ± 2 M.M. |
Number of Profile | Single Profile (as per approved Drawing) |
Profile Dimension | as per Approved Drawing |
Length of Profile sheet | as per Customer Requirement |
Complet Line Weight | 5~7 MT (Approx) |
Colour of Machine | Blue & Red Orange |
Our Wall Sandwich Panel Roll Forming Machines supply the precision metal skins required across demanding construction and insulation sectors:
Architectural Commercial Facades:
Crafting sleek, concealed-fastener Z-Lock wall panels for corporate offices, shopping malls, stadiums, and modern industrial headquarters.
Cold Storage & Logistics Freezers:
Producing airtight C-Lock interlocking sheets for walk-in cold rooms, refrigerated warehouses, and food processing plants where thermal integrity is paramount.
Pharmaceutical & Cleanroom Facilities:
Forming ultra-flat, hygienic wall skins that prevent dust accumulation and withstand rigorous chemical sanitization protocols.
Pre-Engineered Buildings (PEB):
Manufacturing structural internal partitions and external wall cladding for manufacturing plants, logistics centers, and aircraft hangars.
Specializations
Zero Material Wastage
Our calibrated forming passes eliminate sheet buckling and edge wave, guaranteeing 100% usable metal skins and maximizing your square-meter yield per steel coil.
Enhanced Productivity
Our high-speed machines substantially increase production capacity, ensuring timely project completion and enabling efficient market response.
Synchronized In-Line Shearing
Our hydraulic cutting unit utilizes precision die-blades profiled to match your specific Z-Lock or C-Lock geometry, ensuring clean, burr-free cuts without crushing the delicate joint edges.
Turnkey Custom Engineering
We design every roll forming line around your exact factory layout, coil specifications, and architectural joint drawings, delivering an uncompromised, production-ready solution.
