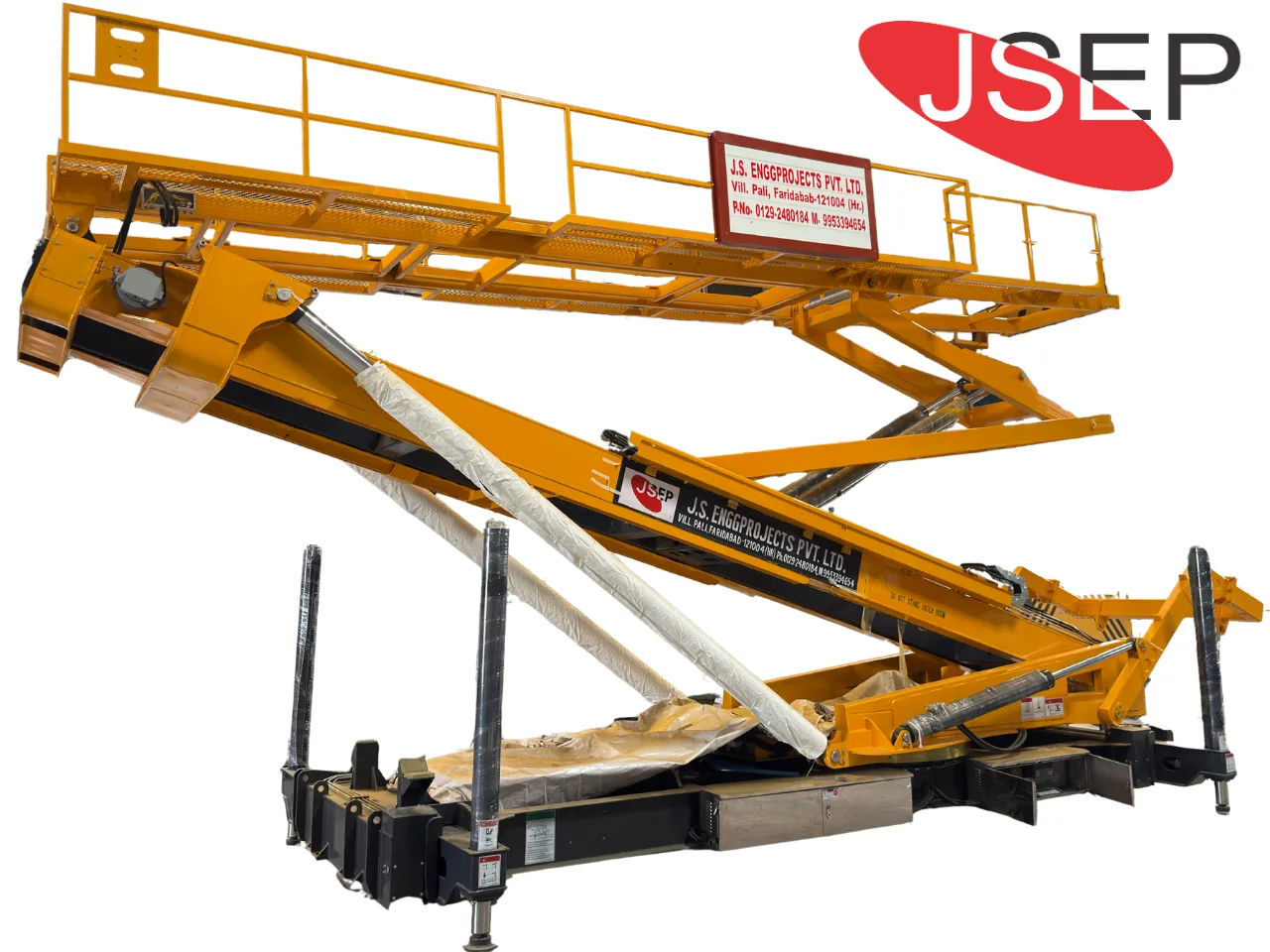

Standing Seam Machine Lifter for PEB Projects

Why Rent a Specialized PEB Roof Machine Lifter?

General-purpose access platforms and standard scissor lifts cannot safely support the dynamic weight and vibration of a fully operational roll forming machine. Our dedicated roll forming machine lifter is specifically engineered for this heavy-duty application.

Continuous, Leak-Proof Panels:

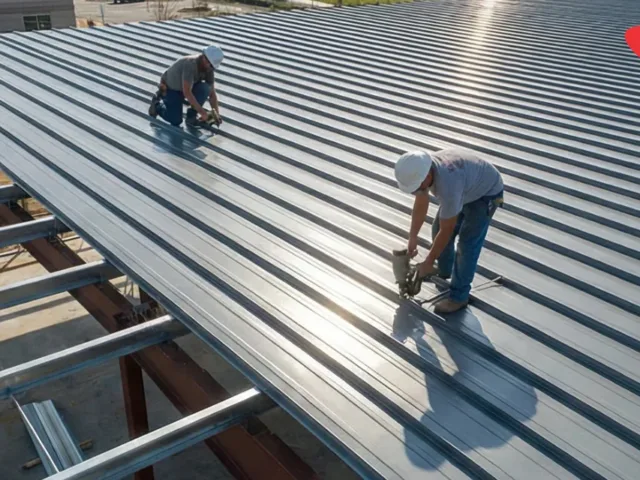

By operating the standing seam machine at the roof level, you can manufacture single-length panels that span the entire structure, eliminating end-laps.

Enhanced High-Altitude Safety:

The equipment is equipped with a humanized safety platform. It features an intelligent control system that maintains a safe distance between the operator and the platform, avoids blind spots, and creates a secure working environment.

Remote Operation:

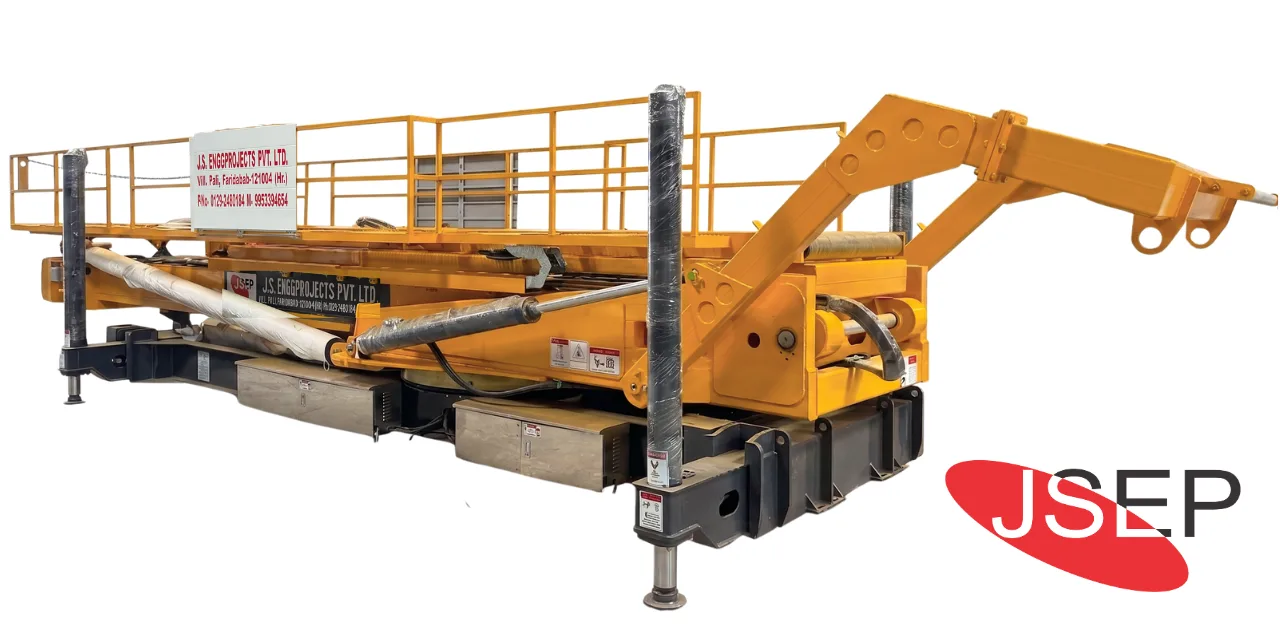

This device remotely operates lifting and tile pressing, which is safer, more efficient, and saves costs and labor compared to traditional roof tile pressing.

Total Machine Control

Both the ground and platform have control screens, enabling the tile machine to be controlled on both the ground and at high altitudes.

Technical Specifications:

Our rental fleet features the rugged Truck-Mounted Lifter, designed to provide maximum stability for your heaviest standing seam and roll forming machines.

Lift Capacity & Performance

• Maximum Lifting Height: Up to 18.5 meters/ 60 feet.

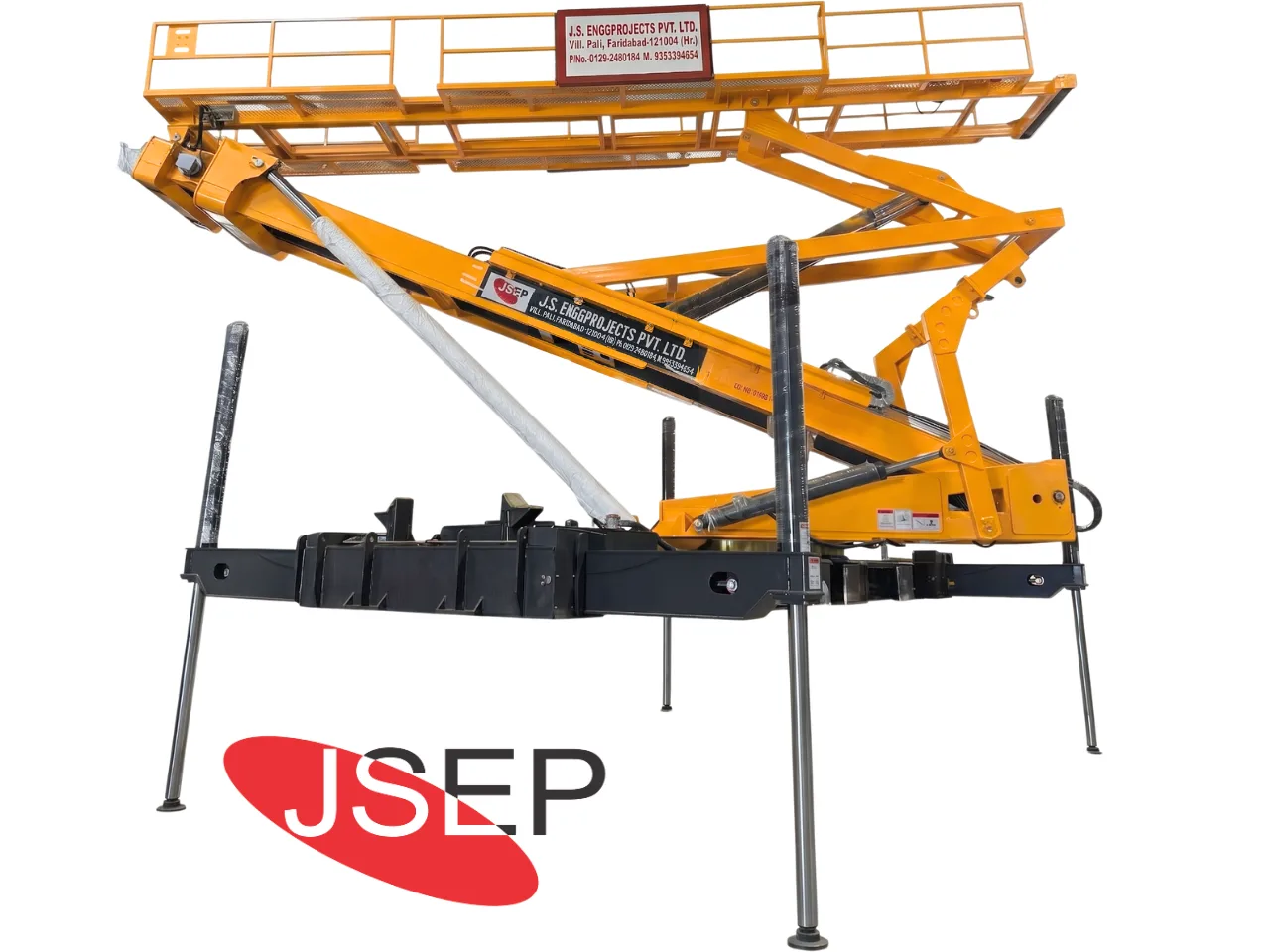

• Payload Capacity: Safely handles up to 6 Metric Tons (6MT), accommodating both the heavy machine and your steel coils.

• Stability System: When lifted to height, the chassis is more stable and firm due to double leg supports, and the amount of chassis shaking is minimal within level four wind.

Design & Mobility

• Robust Construction: The under frame is built with steel, while critical components like the tripod and main boom use 10mm high-strength steel welding.

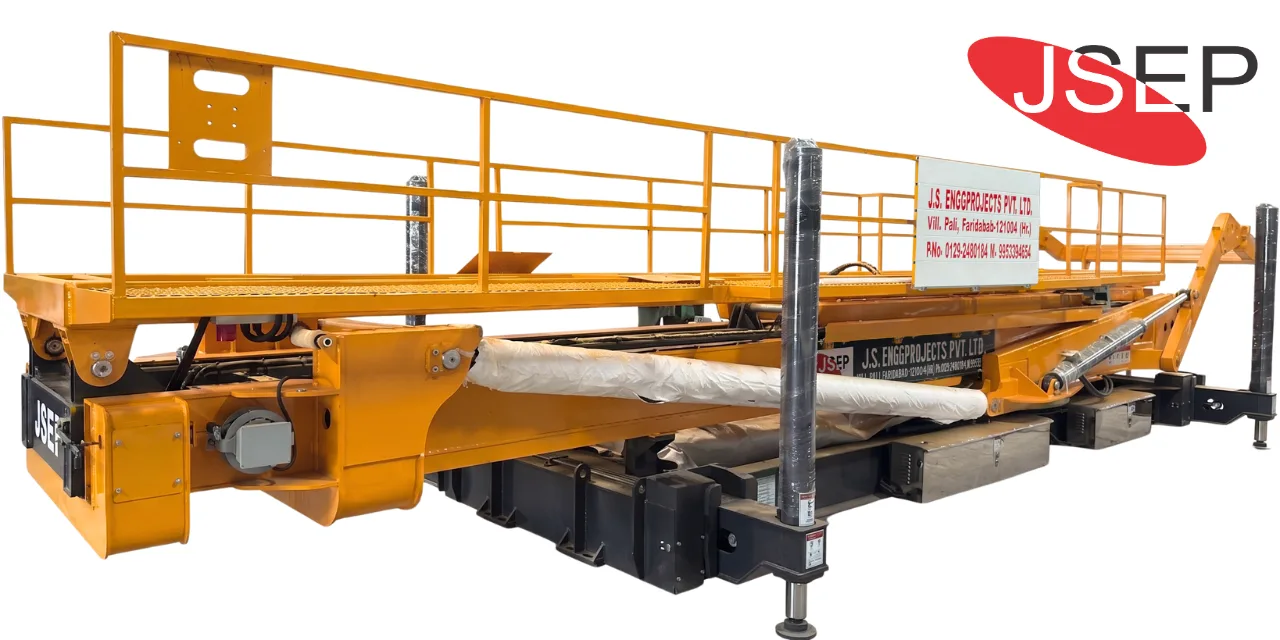

• High Mobility: This device can be installed on a 13-meter semi-trailer truck, ensuring smooth travel without exceeding its capacity.

Hydraulic Reliability

• The system utilizes a high-pressure gear pump (Foster) with an 11KW Inverter motor.

• The oil pump features variable frequency control, providing an adjustable lifting speed and gentle movement, effectively protecting the motor.

• To prevent hydraulic failure, the oil pipe adopts a galvanizing process, and the inner wall is strictly pickled to ensure smooth flow and is free of impurities.
