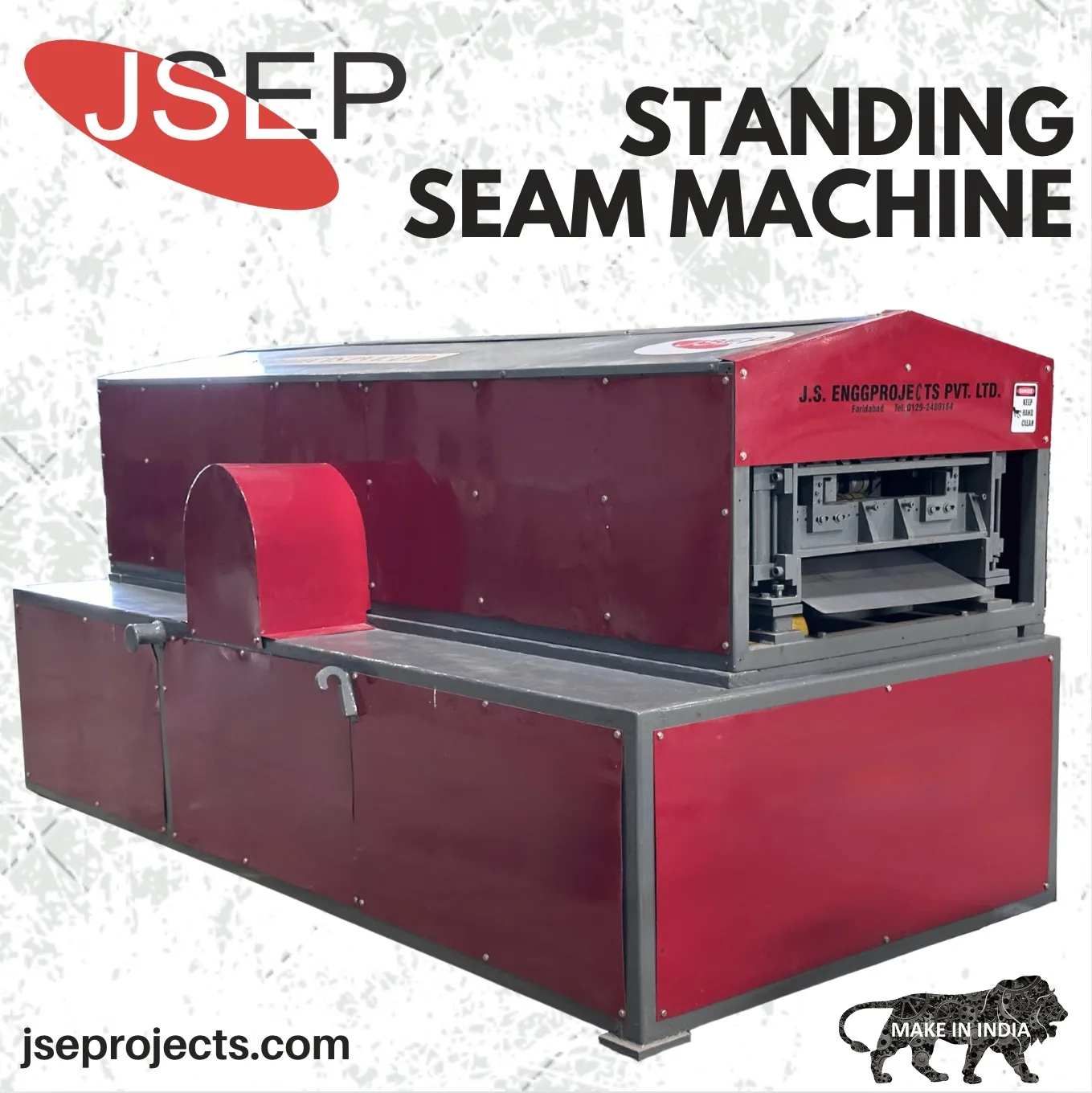

Heavy-Duty Portable Standing Seam Machine
- Description
- Specification
- Application
- Photos/ videos
Unlike traditional factory-bound equipment, the JSEP Standing Seam Machine is designed to be easily transported to any job site and hoisted to the roof level using standard cranes. This allows for the production of continuous panels over 100+ meters in length without the risk of transport damage.
Precision Profiling:
Hardened EN-31 rollers and EN-8 shafts guarantee smooth, scratch-free forming for Bare Galvalume, Aluminium, Copper, and Colour-Coated PPGL coils.
Leak-Proof Output:
Accurately profiles Double-Lock and Snap-Lock panels designed for concealed Halter Clip installation, ensuring a roof with zero exposed screws or puncture holes.
High-Speed Automation:
Driven by a robust Yuken hydraulic system and an advanced PLC controller, achieving consistent production speeds of 15 to 18 meters per minute.
Integrated Cutting:
Features an automatic hydraulic shear with an HCHCR blade for clean, precise cuts with zero panel distortion.
Standing Seam Metal Roof Machine |
|
General Specification |
|
| Machine Name | Standing Seam Roll Forming Machine |
| Machine Type | Heavy-Duty Portable (On-Site) |
| Material Processed | PPGL / PPGI / BGL / Aluminium |
| Sheet Thickness | 0.40 mm – 0.60 mm |
| Yield Strength | 240 – 340 MPa |
| Coil Width | 610 mm (Standard) |
| Production Speed | 15 – 18 Meters/Minute (High Speed) |
| Forming Stations | 10 – 11 Heavy Duty Stations |
| Control System | PLC (Siemens / Danfoss / Allen-Bradley) |
| HMI Screen | Delta 7-inch Touch Screen |
| Cutting System | Automatic Hydraulic Shear (HCHCR Blade) |
| Hydraulic Power | Yuken Make |
| Roller Material | EN-31 |
| Shaft Material | EN-8 |
| Total Weight | ~ 3 – 4 MT (Approx) |
Ideal For Mega-Scale Construction Projects
Our Portable Standing Seam Machine empowers contractors to bid on and execute the most demanding, high-value roofing projects across India and globally.
-
Airports, Railways & Metro Stations: Perfect for creating large-span, curved, or tapered roofing systems that require absolute zero-leakage guarantees.
-
Industrial PEB Warehouses: Produces heavy-duty, wind-resistant panels ideal for massive factories and logistics parks in extreme weather zones.
-
Solar Rooftop Projects: The raised standing seam ribs allow solar panels to be mounted using specialized clamps, completely eliminating the need to drill holes into the metal roof.
-
Commercial & Architectural Buildings: Excellent for profiling aesthetic metals like Zinc or Colour PPGL for modern facades, luxury resorts, and commercial centers.
Customer Rating: ⭐⭐⭐⭐⭐ 4.8/5 based on 28 verified reviews from roofing contractors in India. Trusted for heavy-duty on-site performance.
- Can the JSE Standing Seam Machine be transported to the construction site?
- What materials and thicknesses can this machine process?
- Do you provide the Mechanical Roof Seamer as well?
Yes! Our standing seam roll forming machine is engineered specifically for heavy-duty on-site production. It is compact, lightweight, and can be easily lifted by standard cranes to the roof level, allowing you to profile continuous panels of unlimited length without transport damage.
The Standing Seam machine is highly versatile and comes with precision EN-31 rollers. It can seamlessly process Bare Galvalume (AZ150), Colour Coated PPGL, PPGI, and Aluminium coils ranging from 0.40 mm to 0.60 mm in thickness without scratching the paint or finish
Yes, J S ENGGPROJECTS provides the complete roofing solution. We manufacture and supply both the primary Standing Seam Machine and the portable Mechanical Roof Seamers required to crimp the Double-Lock and Snap-Lock joints on site.
Specializations
-
Heavy-Duty Mobile Design: Our machines are constructed with reinforced steel frames, engineered specifically to withstand the vibrations of constant transport and heavy-duty on-site lifting.
-
Stringent Quality Control: From raw material inspection of the EN-31 rollers to the final PLC electrical testing, every machine undergoes rigorous trials at our Faridabad factory before dispatch.
-
Customization Capabilities: We understand that project specs vary. We can customize the roll forming stations, coil widths, and profile dimensions to match your exact architectural requirements.
- Lifetime Service & Support: Because we manufacture the machine locally, you get Pan-India installation training, immediate spare parts availability, and lifetime technical support from our engineering team.
Aesthetic Precision
Customization for Your Needs
Service and Support:
